Air Domes

You are here: Home » Product Category » Air Dome » Air Domes

Air Dome Supplier

We have an excellent technical team, which can be designed according to customers requirements.

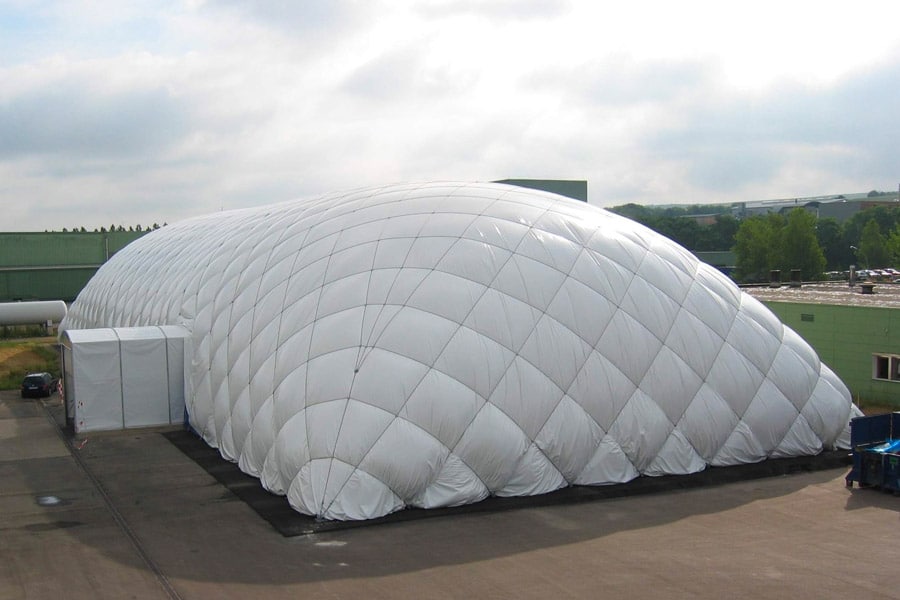

Air dome building is a kind of building structure system that uses special building membrane material as the shell, equipped with a set of intelligent electromechanical equipment to provide positive air pressure inside the air-film building and support the main body of the building.

REQUEST A QUICK QUOTE

Air Dome Applications

The air domes can withstand heavy snow, high or low temperatures, and high winds in all environments. They are energy-saving and environmentally friendly and can be rebuilt and reused.

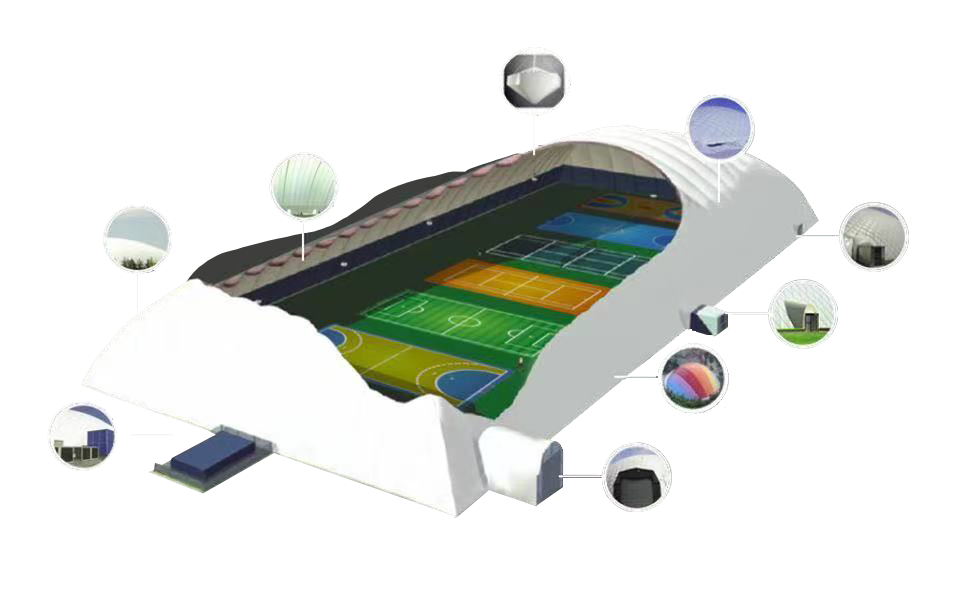

Air dome building is a grid type cable structure with intelligent control system,emergency back-up system, anchorage system, multiple access channels and shadow-less lighting system etc.

The steel cable adopts a vertical and horizontal and spider web structure to surround the entire outer membrane of the air-dome building. So that the load borne by the outer membrane is effectively transmitted to the steel cable system.

The intelligent control system is the brain of air dome building, which can be integrate fresh air. Cooling and heating generator sets environments monitoring, fault detection and other systems into one. Intelligent control and automatic adjustment can be carried out through the mobile APP, which greatly reduces labor costs.

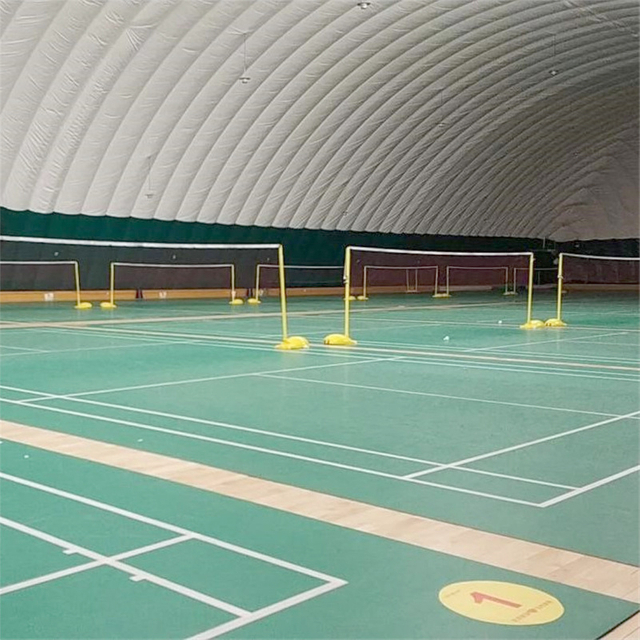

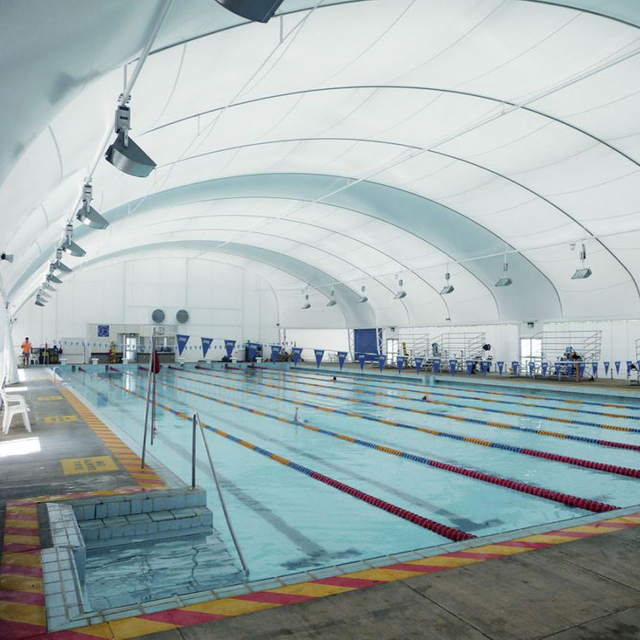

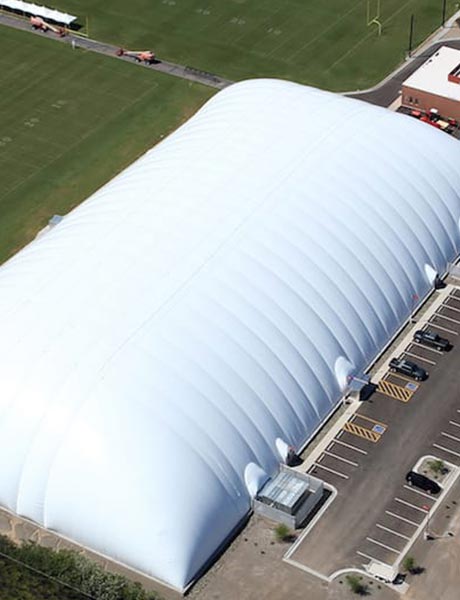

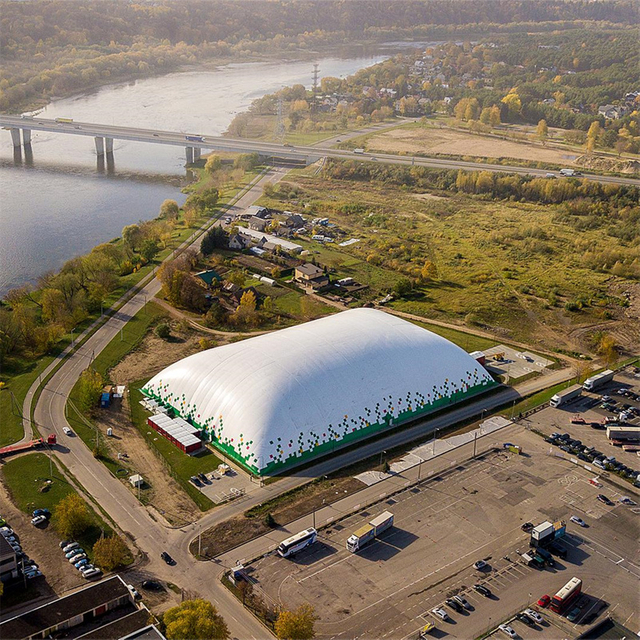

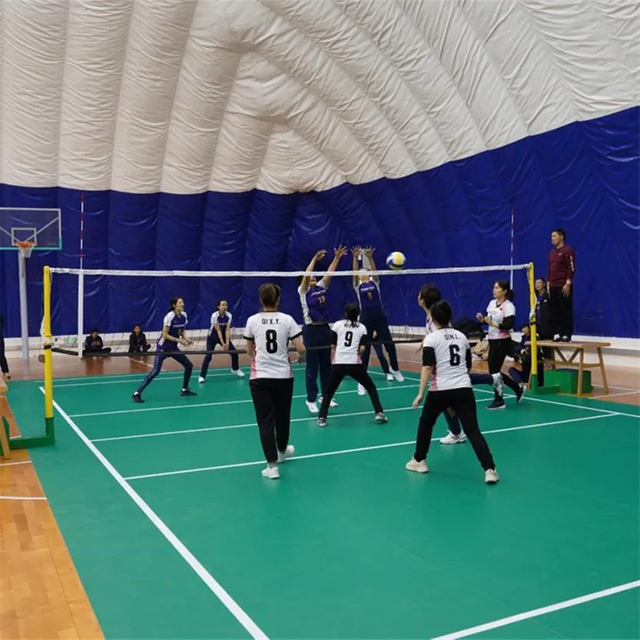

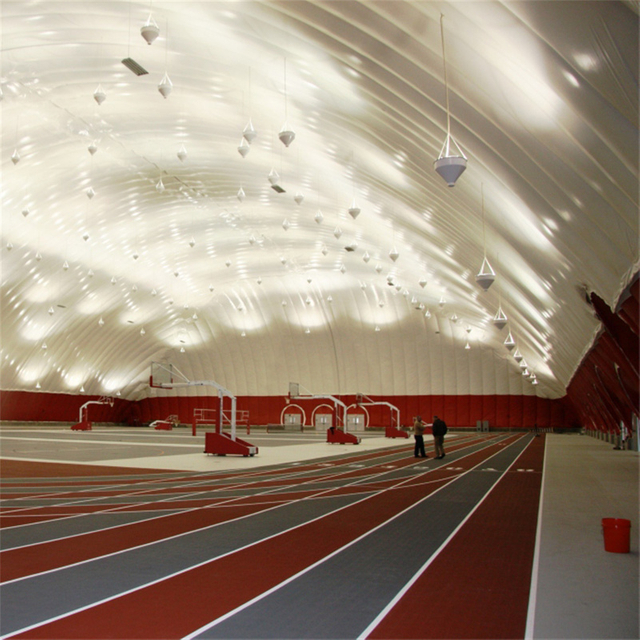

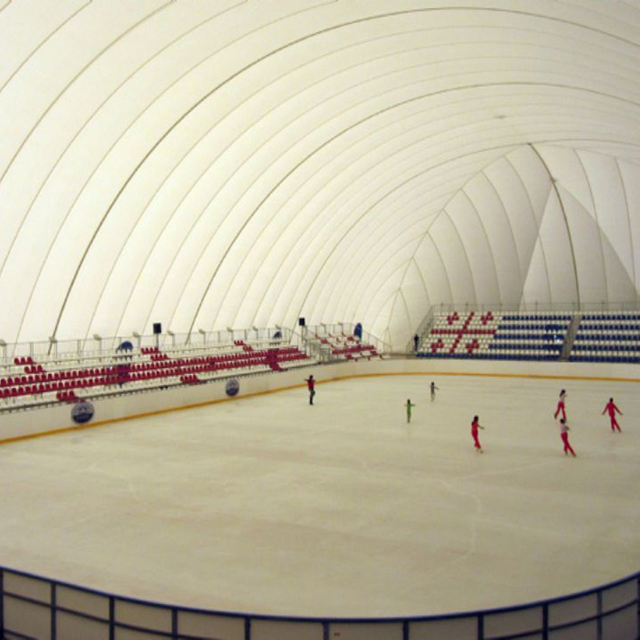

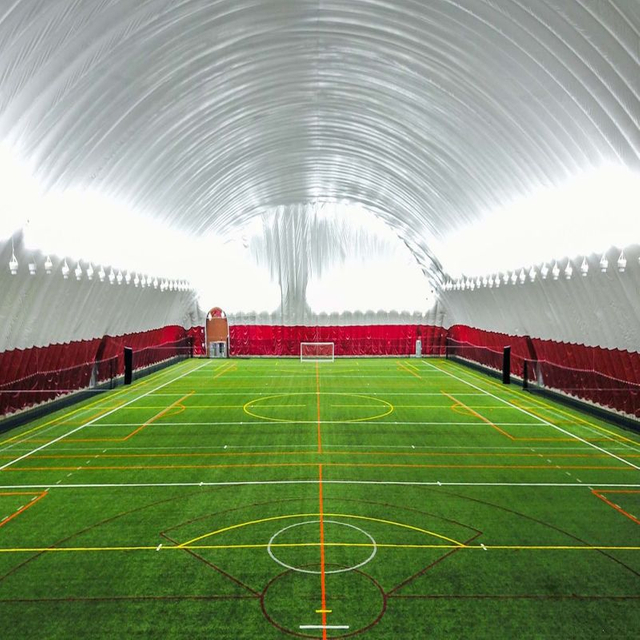

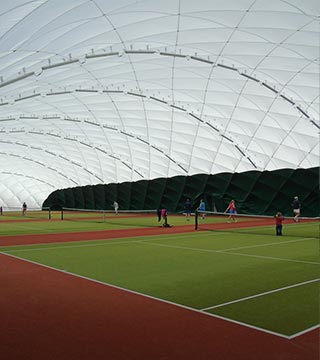

Air dome buildings have widely application for commercial operation,sports building and stadiums, industrial building, warehouse building etc, they are energy-saving and environmentally friendly and can be rebuilt and reused.

LED LIGHTING

WITHSTANDS UP TO 150mph WIND AND 50psf SNOW

HANDICAP-ACCESSIBLE AIR LOCK

REVOLVING AIR LOCK

FABRIC CAN BE VIRTUALLY ANY COLOR

CARGO/VEHICLE AIR LOCK

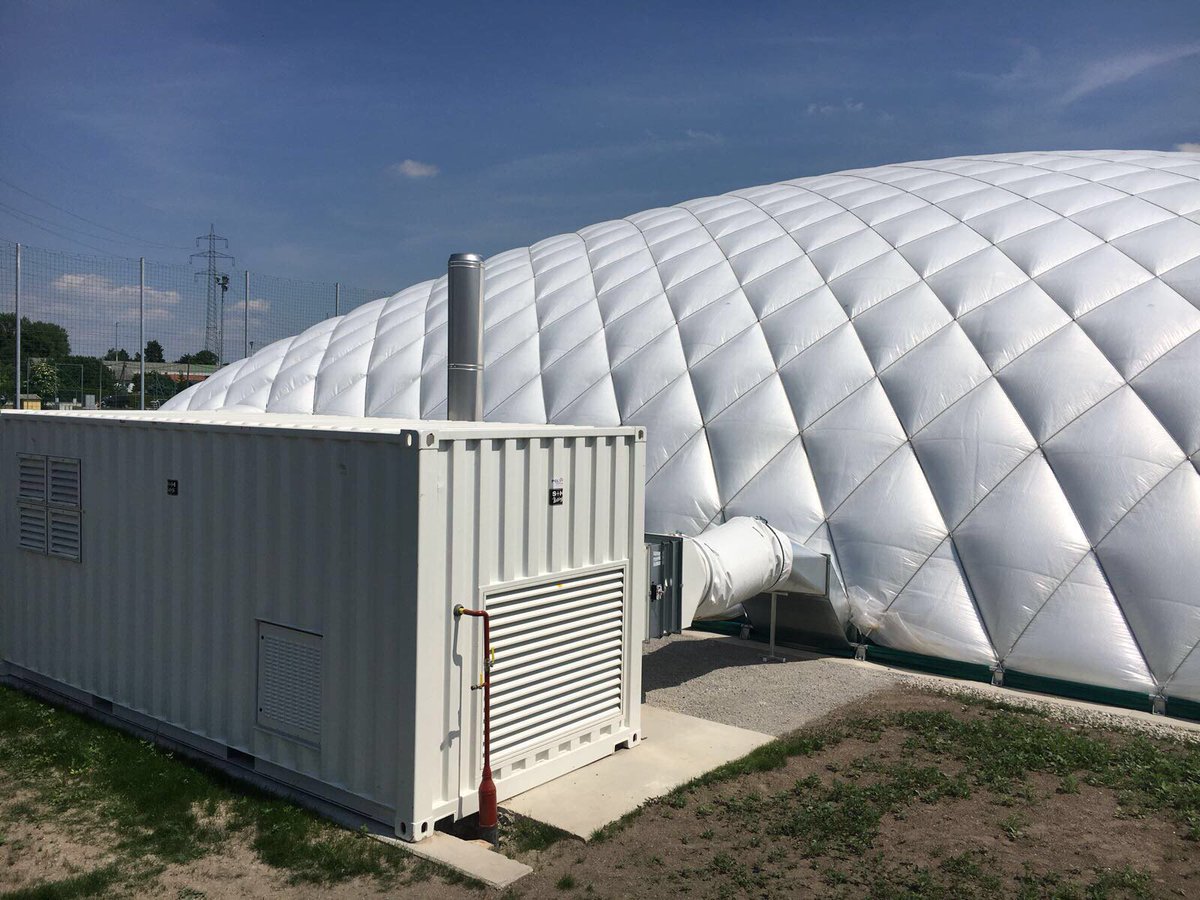

AIR HANDLING UNIT (w/backup)

HIGH STRENGTH DOME FABRIC HAS UP TO 30+ YEAR USEFUL LIFE

HIGH INSULATION VALUE=LOW O&M COSTS

LED LIGHTING
WITHSTANDS UP TO 150mph WIND AND 50psf SNOW
HANDICAP-ACCESSIBLE AIR LOCK
REVOLVING AIR LOCK
FABRIC CAN BE VIRTUALLY ANY COLOR
CARGO/VEHICLE AIR LOCK
AIR HANDLING UNIT (w/backup)
HIGH STRENGTH DOME FABRIC HAS UP TO 30+ YEAR USEFUL LIFE
HIGH INSULATION VALUE=LOW O&M COSTS

WZ tent technology provide a full air dome service which includes, but is not limited to, an initial consultation, bespoke air dome design, air dome production, dome installation and maintenance and support services as required.

Advantages of the Air Dome

low cost, high quality, short construction cycle;
no beam, column structure, wide internal space, design cloth

Office diversity, large span, high space utilization rate;

with good light transmission, air tightness and air purification

Device, no haze environment, fresh air;

automatic constant temperature and humidity, warm in winter and cool in summer, full heat

Change the control system, low energy consumption, promote environmental protection, high safety factor.

can be moved as a whole, applicable to different geology

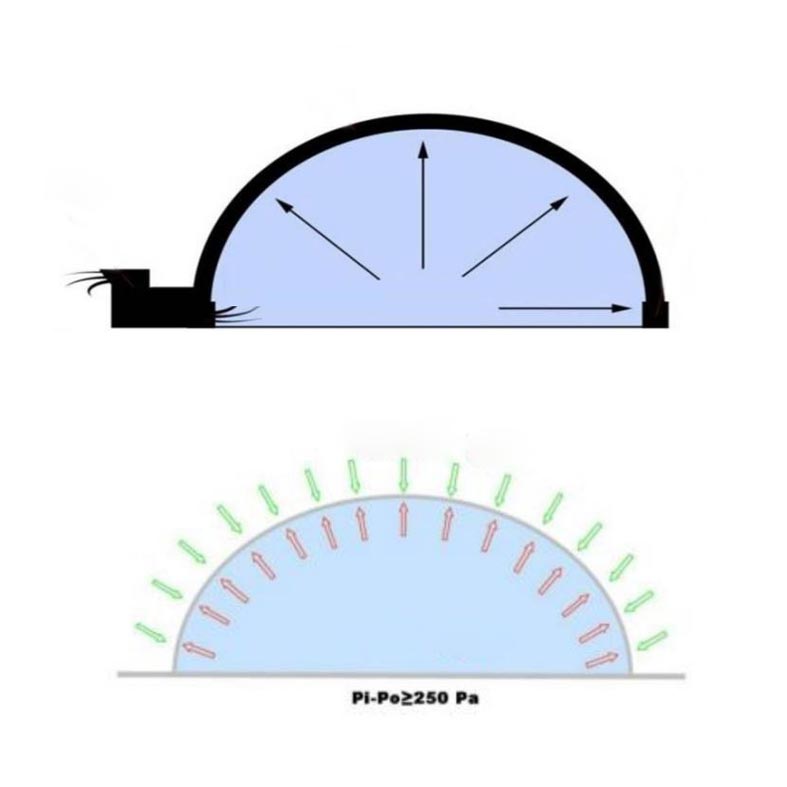

Principle of Air Dome Structure

The air dome structure uses the special building film material as the building shell, and uses the pressure difference between the inside and outside of the gas film to support the whole building and form a beautiful appearance. Usually the air pressure difference between the inside and outside of the membrane is 250pa, about 0.0025 atmospheres (equivalent to the air pressure difference between the first and ninth floors of normal buildings).

Application Field of Air Dome Structure

Sports venues emergency relief venues environmental protection venues agricultural and ecological venues

cultural and entertainment venues exhibition venues

industrial venues commercial venues military field venues

CUSTOMIZED MEMBRANE STRUCTURE APPLICATION SOLUTIONS ACCORDING TO INDUSTRY CHARACTERISTICS

Many years of temporary construction technology sedimentation, creating new space construction technology of air dome

GET QUOTATION

Characteristics Of Air Dome

SHORT CONSTRUCTION PERIOD

The high-performance fiber membrane material is used as the space shell, which does not need complex foundation treatment, and the intelligent electromechanical equipment is used for continuous air supply to support the super large space without beams and columns inside.
SAFETY EXPLOSION PROOF

The material adopts fire-retardant film material, which meets the national B1 fire prevention requirements and can withstand force 10 wind and one meter thick snow load. There are 24-hour real-time monitoring, fire warning, intelligent explosion-proof and other systems inside.
SPAN OVER 100 METERS

The air dome building is mainly supported by the internal air pressure, without building structures such as beams and columns. Its self weight is very strong, and the building area is unlimited, which can easily span more than 100 meters.
REUSABLE

The membrane material of air dome building is a multi-layer composite material, with multiple surface treatments, simple building structure, convenient construction, and no need to damage the foundation. It can be relocated at any time and reused.
ENERGY CONSERVATION

The membrane material of air dome building is a multi-layer composite material, with multiple surface treatments, simple building structure, convenient construction, and no need to damage the foundation. It can be relocated at any time and reused.
CONTROLLABLE COST

The cost of air dome construction is low. Due to the comprehensive factors of short construction period, less demand for construction equipment and low ground treatment cost, the cost of air dome construction is 1/3 lower than that of traditional buildings, and there is no need for maintenance.
